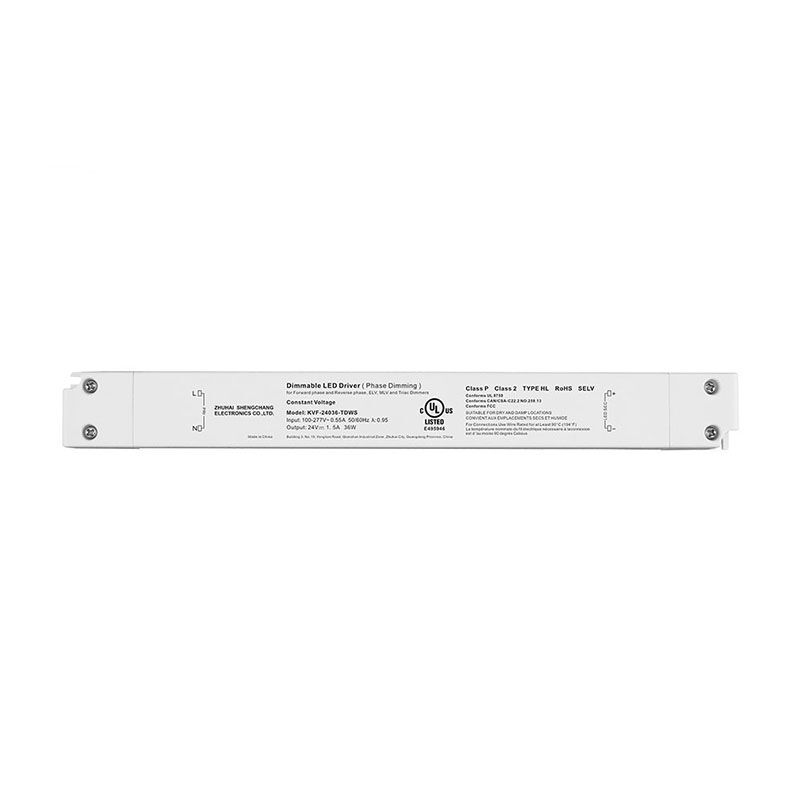

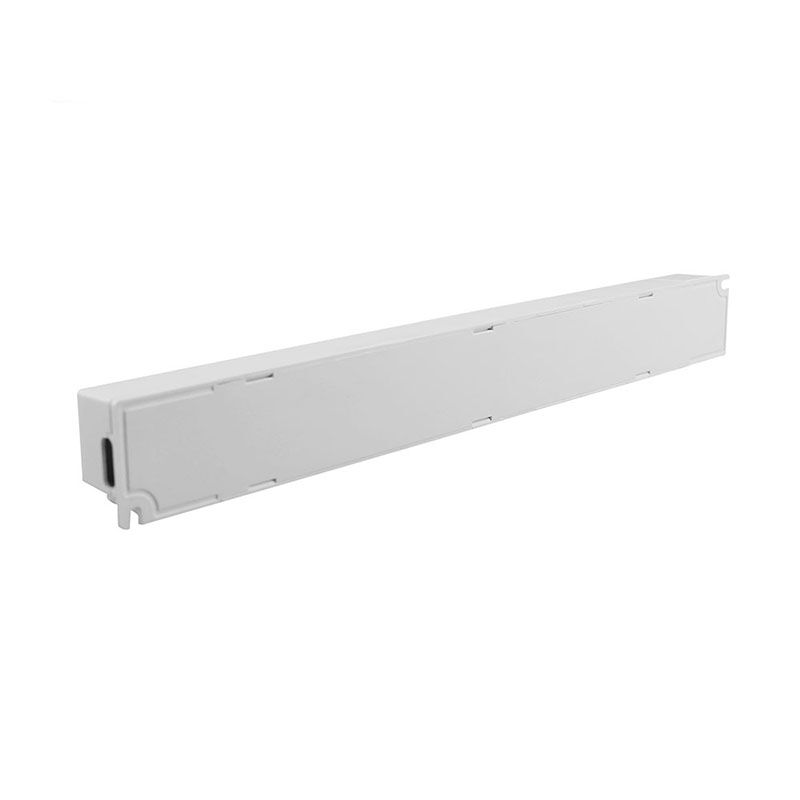

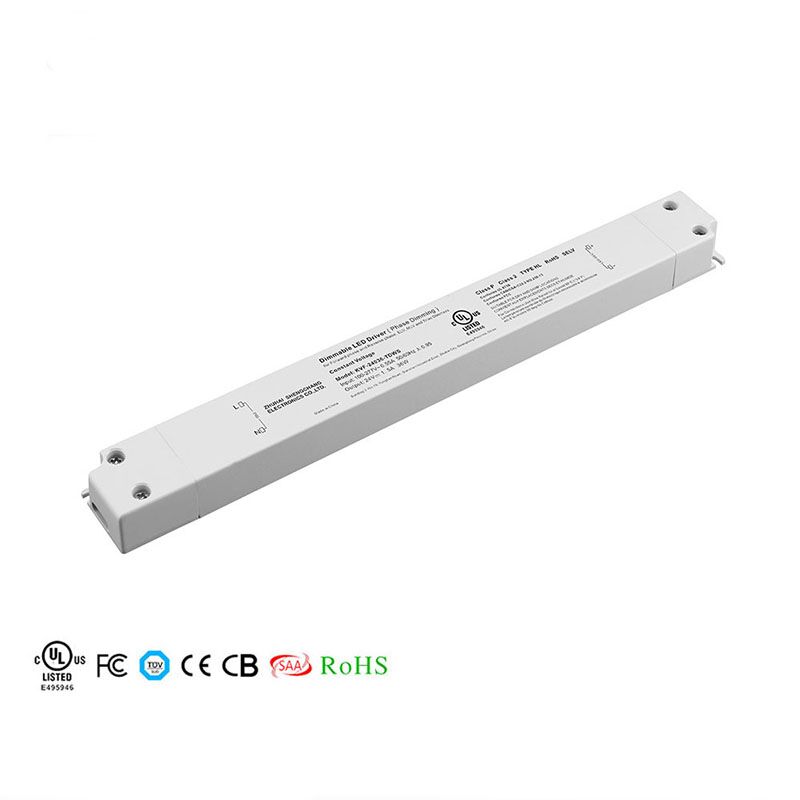

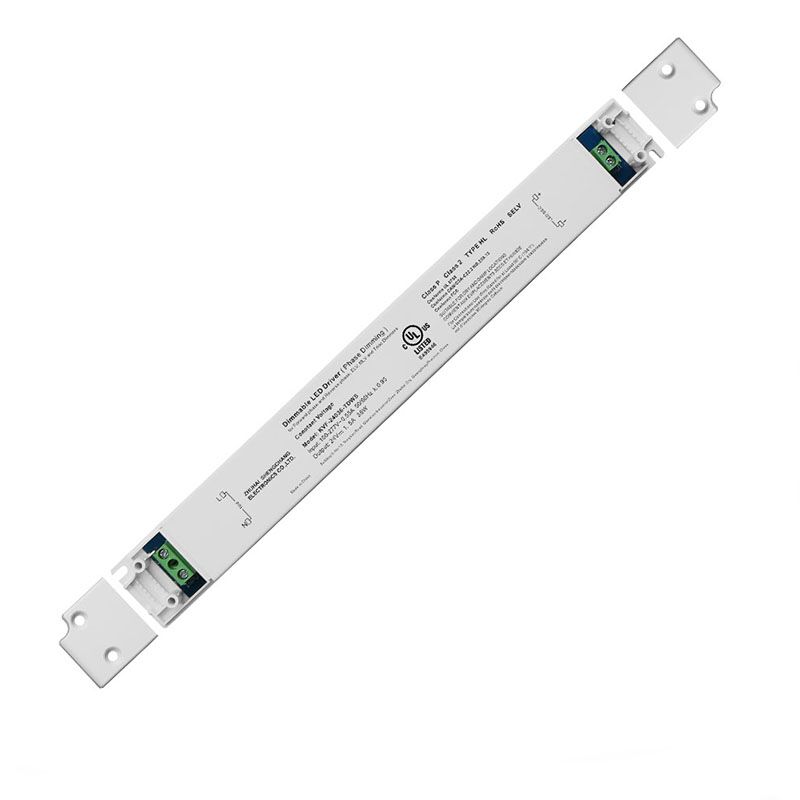

| Model | Ultra Slim Dimming LED Power Supply |
|---|---|
| Input | 100-277VAC |
| Output | DC12V or DC24V |
| Power | 36W-100W |
| Working Temprature | -30~+70℃ |
| Usage | Suitable for Consumer electronic |
| Dimmable | 0~10VDC, PWM signal or resistance |
·Output constant voltage
·UL, cUL listed, Class 2, Class P, Type HL
·Universal AC input: 100-277VAC
.Power Factor: up to 0.99
·High efficiency: up to 80%
·Dimming range: 0-100%
·Load: 10-100%
·Protection:short circuit/overloading/ Over temperature
·PWM output does not change the color index
·Full protection plastic case, for dry and damp locations
·Flicker-free
·Compatible with Forwarding phase, Reverse phase, Triac, MLV, ELV Dimmers
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
Specification
| Model | KVF-12036-TDWS |
KVF-24036-TDWS |
|
| Certificates | FCC UL cUL Class 2 | FCC UL cUL Class 2 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 3A | 1.5A | |
| Rated Power |
36W/60W/96w/100w |
||
| Voltage Tolerance |
±0.5V |
||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range |
47-63Hz |
||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.95@277VAC | 0.99@120VAC 0.95@277VAC | |
| THD(Typ.)@ full load | 120V<10%; 277V<15% | ||
| Efficiency(Typ.)@ full load | 120V 79% ; 277V 80% | 120V 79% ; 277V 80% | |
| AC Current(Max.) | 0.5A@100VAC | ||
| Inrush Current (Typ.) | 120V–5A, 50%, 960us ; 277V–13A, 50%, 1ms | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | 120VAC Hiccup mode,recovers automatically after fault condition is removed 277AVC shut down o/p voltage, re-power on to recover after fault condition removed. |
|
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed. | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| others | Net. Weight | 0.2Kg | |
| Size | 260*30*18.5mm (L*W*H) | ||
| packing | 330*270*130mm/50pcs /CTN | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input, rated load, and 25℃of ambient temperature.
2. To extend the driver’s using life ,please reduce the loading at lower input voltage. |
||
