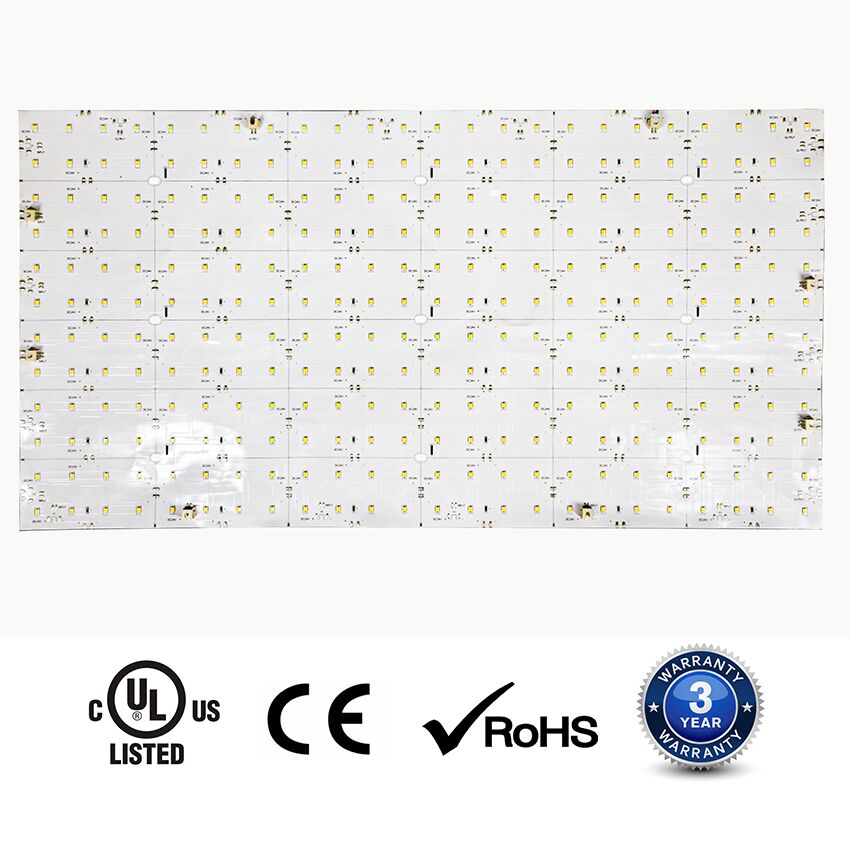

LED Flexible Sheet

Backlight LED Flexible SHEET

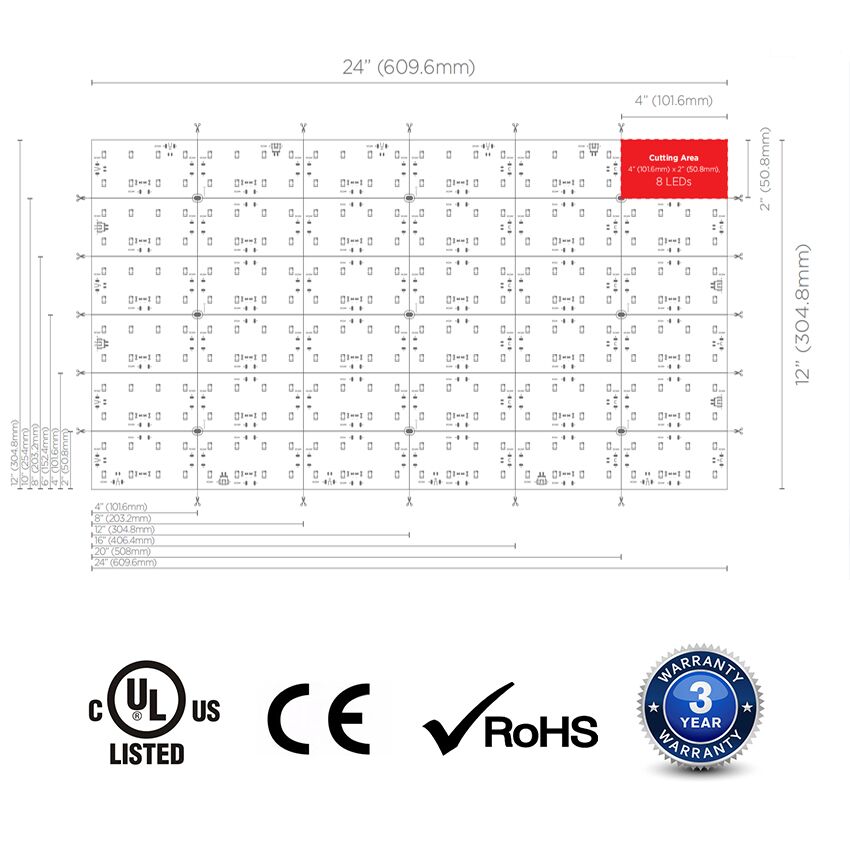

For curvy, space-sensitive backlighting solutions requiring the thinnest of lighting solutions, we provide LED Flexible Sheets. These sheets are great for indoor backlighting projects where a lighting solution that is both thin and bendable may be needed to fit into soft, curving surfaces and spaces. Great for projects of many shapes and sizes, may be tiled for grand format illumination or cut into pieces as small as 2” x 4”（305x610mm） to meet the needs of your specific application.

Technical Data

-Efficacy: CRI90+ up to 150lm/w, CRI95+ up to 132lm/w.
-CRI/TM-30-15: CR1>95 / (Rf>93-Rg>99, R9>94) CR1>90 / (Rf>90-Rg>99, R9>65).
-Color Consistency : 3SDCM (typical).
-Waterproof: IP64 (Spray Glue Coated).
-Lumen Maintenance: 55°C: L70/B10>54000hrs, lumen maintenance 88.51%, L90/B10>47000hrs, lumen maintenance 89.95%.
-Lumen Maintenance: 85°C: L70/B10>54000hrs, lumen maintenance 86.01%, L90/B10>38000hrs, lumen maintenance 89.95% .
-Warranty: 3year.
-Mounting: double-side thermal conductive adhesive tape or 9080H 3M self adhesive tape.
Dimmable: PWM, 0-10V, DALI, DMX available.

Application

· Architectural Indoor & Outdoor Entrance Facade
· Luminous Ceilings & Walls
· Indoor Ad Signage
· Outdoor Ad Signage
· Backlighting
· Architectural Lighting
