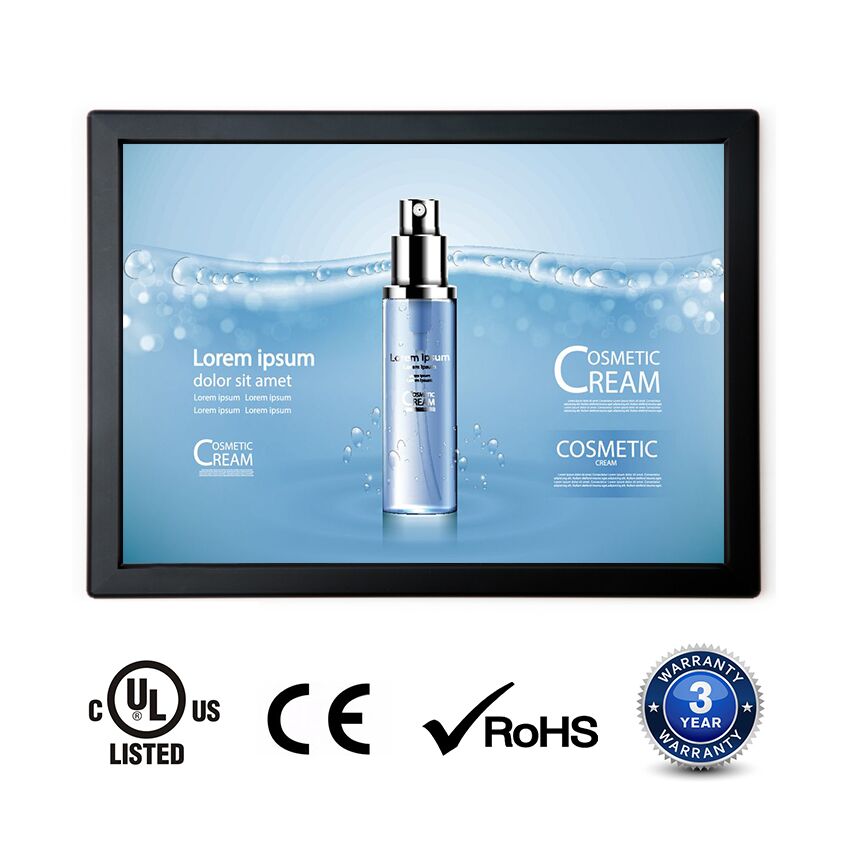

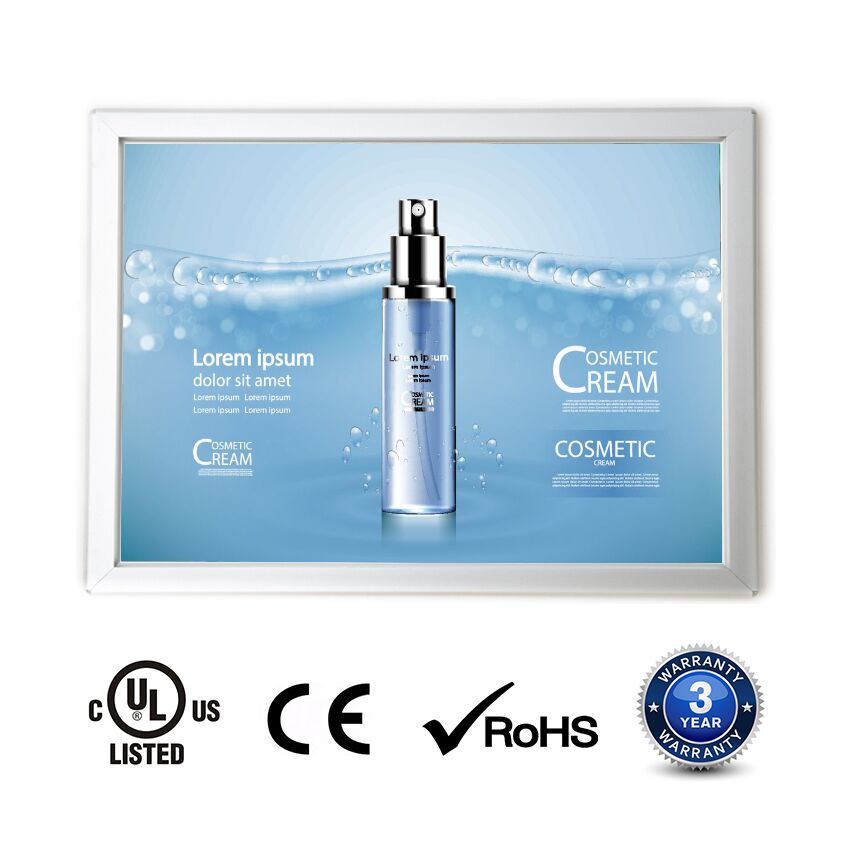

20mm Snap frame Light Box

The single side snap frame lightbox is an ultra-thin advertisement lightbox with energy-saving light. The four-side click open offers practicality through the quick and easy changing of graphics. The main parts are LGP (Light Guide Plate), LED strip, and click aluminum frame.

Additional information

Model

CF012

Depth

3/4" (20mm)

Frame Color

Black, Silver, Customize frame color

Size

A0, A1, A2, A3, A4, Custom size up to 50" x 94" (Graphic Size)

Input Voltage

DC12V / DC24V

CCT

2700K-10000K, Customize CCT

Life Span

50,000 Hours

Product Details

Snap frame lightbox features the high-quality LGP (Light Guided Plate) LED light panel enclosed in a flawlessly designed aluminum snap frame. Add an evenly illuminate backlight source to any printed image to attract more attention for your products or services.

Model No.: CF012

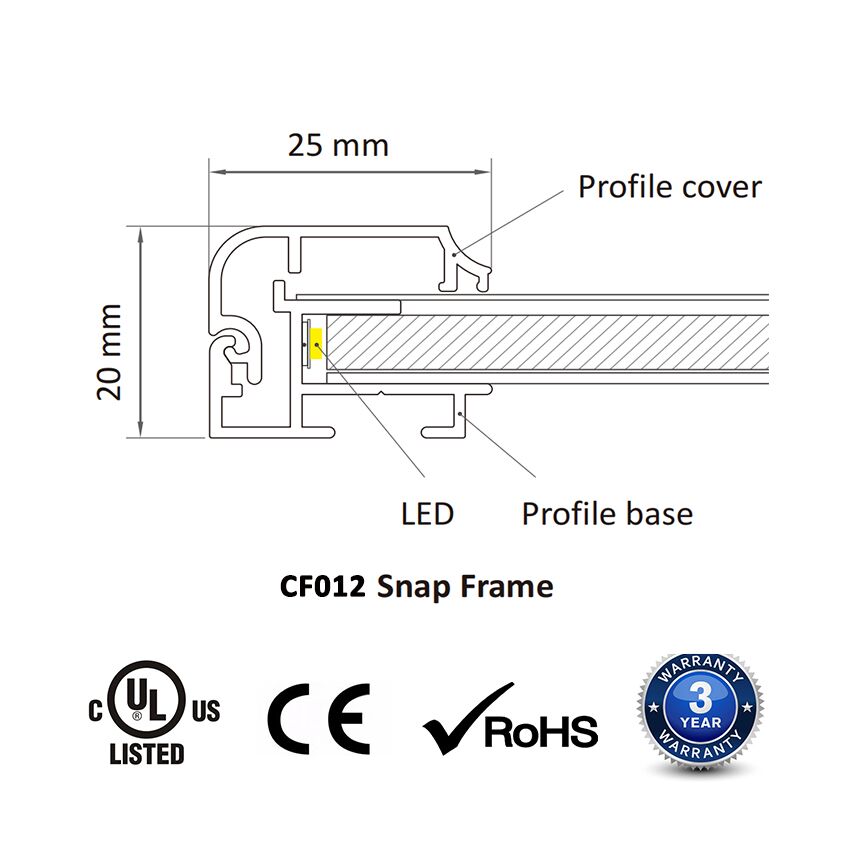

Dimensions

  • Depth: 3/4″ (20mm)
  • Frame Width: 1″ (25mm)
  • Frame Size = Graphic Size + 30mm
  • Visual Area = Graphic Size – 20mm



Main Features

  • Frame colors available : Silver, Black  (Custom color is available)
  • Laser dotted LGP with high uniformity >90%, PMMA from Mitsubishi
  • High Quality and UL & cUL listed Light Box (E476080)

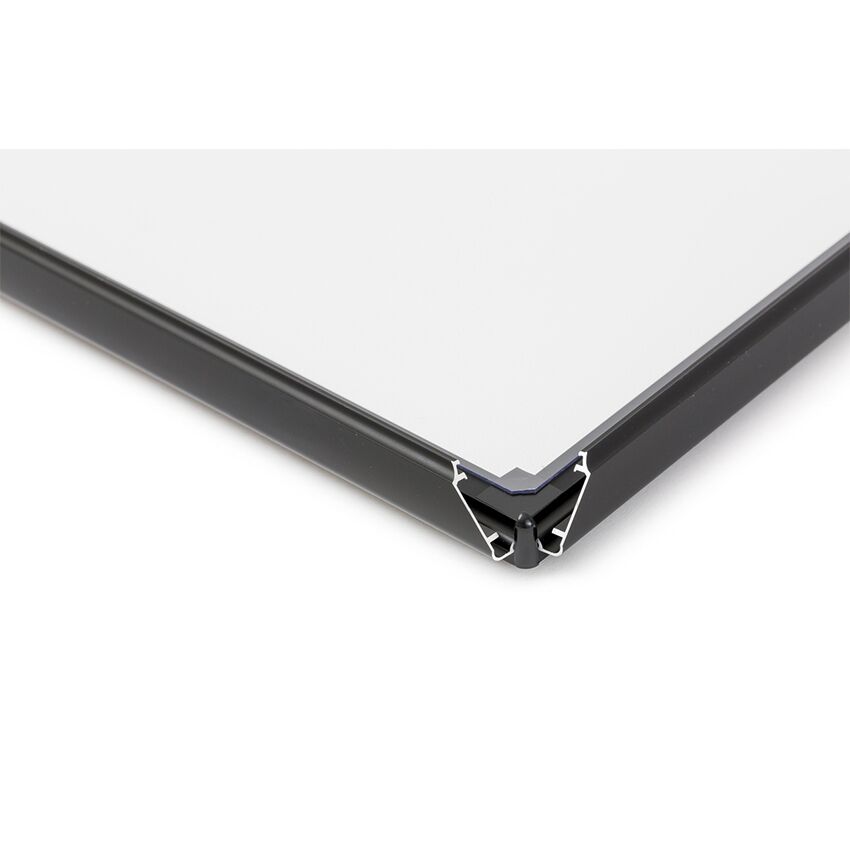

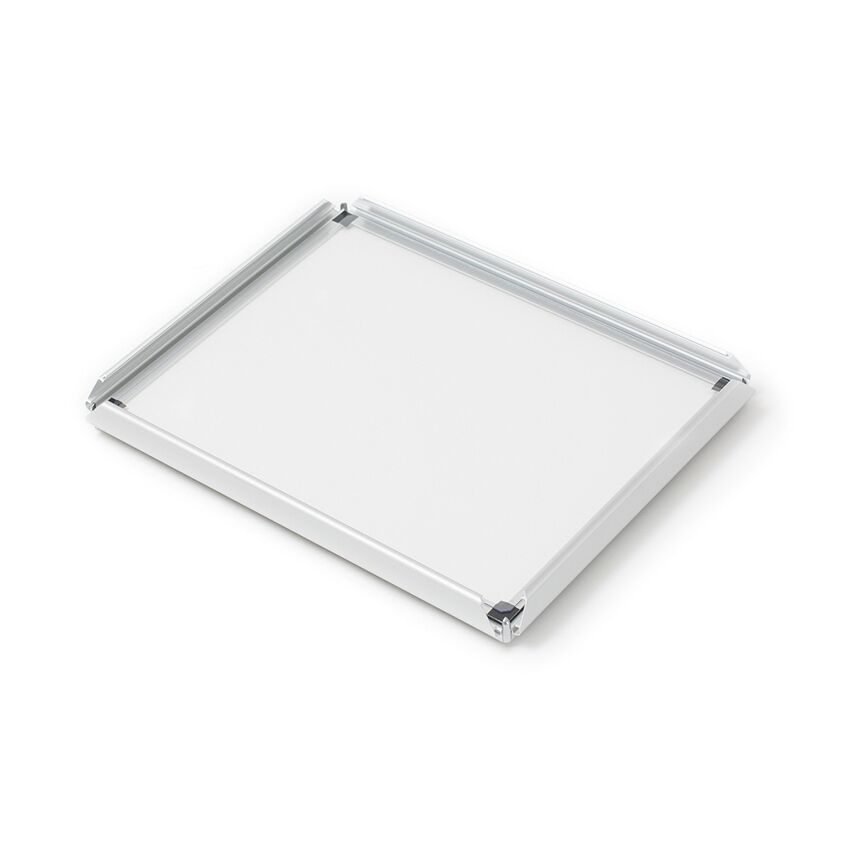

  • Snap-open Frame makes changing images quick and easy
  • A variety of sizes as well as custom size up to 50″ x 94″ (Graphic Size)
  • Easy installation with mounting hardware provided
  • Scratch-resistance Polycarbonate protection film (0.8mm)
  • 2 Year Manufacturer Warranty



Custom Options

  • Mounting Brackets or hanging parts
  • Printing poster
  • Dimmer & UL listed Power supply

Packing: Individual carton packing or wooden case packing, protection inside.



Application:

  • Menu for Food & Beverage
  • Retail Advertisement
  • Trade Show Exhibit
  • Theater Imaging
  • Transportation System
  • Hospitality
  • Casino
  • Hospital / Clinic
